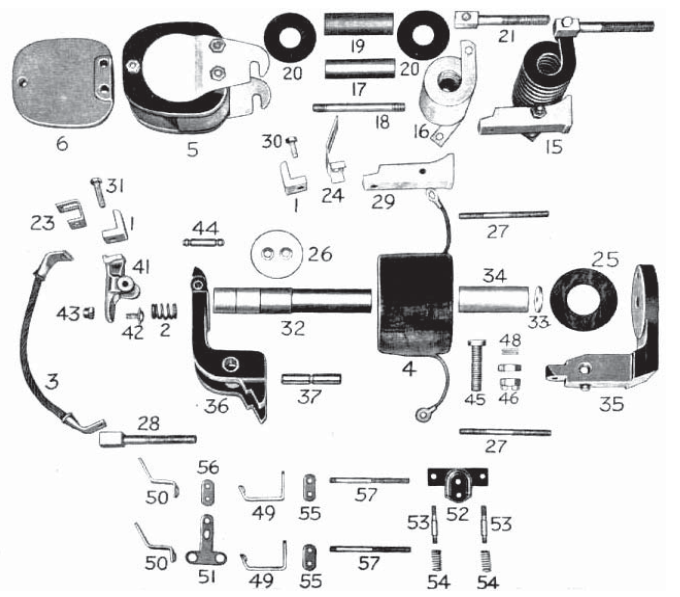

Ohio Contact replacement crane controls for Clark D.C. Magnetic Contactor Form 150-4RT. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | A16-7980 | Contact |
| 2 | A18-8897 | Contact Spring-Back Connected |
| 3 | A18-8863A | Connector |
| 5 | A18-22026A | Arc Shield, Assembly |
| 6 | A18-21322 | Arc Shield Side Plate |
| 7 | T-38-65 | Arc Shield Washer |
| 8 | T-7-122 | Arc Shield Stud |
| 9 | T-120-186 | Arc Shield Stud |
| 10 | A18-21323 | Arc Barrier, Front |
| 11 | A16-8005 | Arc Barrier, Rear |
| 13 | A18-3510 | Blowout Ear, R.H. |
| 14 | A18-3511 | Blowout Ear, L.H. |
| 15 | A18-23688A | Blowout Coil, Assembly |
| 16 | A18-23689 | Blowout Coil |
| 17 | T-24-93 | Blowout Core |
| 18 | T-7-123 | Blowout Core Stud |
| 19 | T-39-86 | Blowout Core Insulator |
| 20 | T-38-36 | Blowout Washer |
| 21 | A18-23690 | Blowout Stud |
| 22 | A18-23692 | Blowout Spacer |
| 24 | A16-8007 | Arc Horn, Rear |
| 25 | A18-24397 | Coil Washer |
| 26 | A18-13663 | Coil Clamp |
| 27 | T-7-47 | Coil Terminal Stud |
| 27 | T-7-199 | Coil Terminal Stud |
| 28 | A18-16994 | Connector Stud |
| 28 | A18-8002 | Connector Stud |
| 29 | A18-23691 | Contact Stud |
| 30 | T-104-1 | Contact Screw |
| 33 | T-2-14 | Core Washer |
| 34 | T-24-94 | Core Spacer |
| 35 | A18-25365A | Frame |
| 36 | A18-25343A | Main Arm Assemble |
| 37 | T-66-2 | Main Arm Pin |
| 38 | A18-9491-2 | Main Arm Bushing, Upper |
| 39 | A18-9474-10 | Main Arm Bushing, Lower |
| 40 | T-40-22 | Main Arm Bushing, Lower, Brass |
| 41 | A18-26290A | Main Contact Support-Back Conn |
| 42 | A18-7987A | Mov Contact Support Adj. Screw |
| 43 | A18-9469 | Mov Contact Support Lock Nut |
| 44 | A18-24296 | Moving Contact Support Pin |
| 45 | A18-2547 | Stop Stud Nut |
| 45 | A18-61330 | Stop Stud |
| 47 | T-3-17 | Stop Stud Pin |
| 48 | T-2-18 | Stop Stud Washer |
| 49 | A18-9465A | Stationary Control Contact |
| 50 | A18-9466A | Stationary Control Contact |
| 51 | A18-9464A | Auxiliary Contact Bar, Moveable |
| 52 | A18-2544 | Aux. Contact Insulator |
| 53 | A18-9477 | Aux. Contact Stud |
| 54 | A18-9483 | Spring |
| 55 | A18-2543 | Aux. Contact Base Plate |
| 56 | A18-2542 | Aux. Contact Plate |
| 57 | T-7-47 | Coil Terminal Stud |
| 57 | T-7-36 | Aux. Stud |
| 57 | T-7-150 | Aux. Stud |
